1 Complete speaker back plate Installation & termination kit. It contains everything you need to complete the installation.

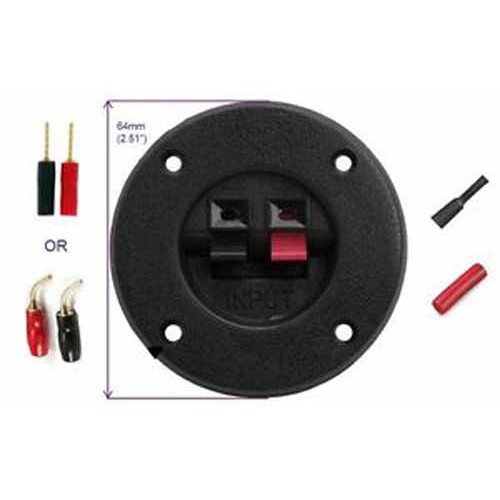

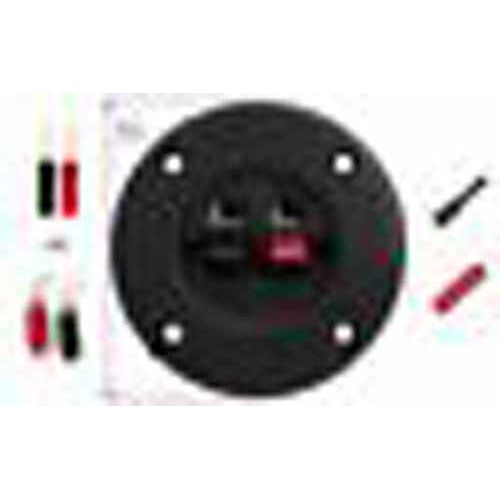

Package contents : 1 x Round chassis with 2 clip fittings.

1 x black and 1 x red high quality gold pin plugs (screw connection) - straight or angled ( please state when ordering or either will be sent)

High temperature heat shrink

4% audio grade silver solder

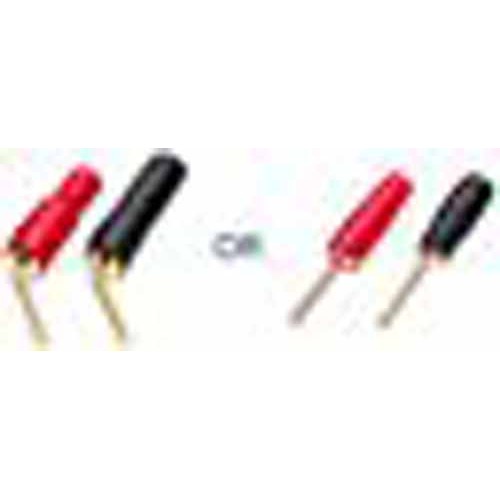

Specification Pin Plugs

High quality, gold plated banana plugs.

Easy screw connection

Color coded black / red rings for maintaining proper polarity.
Secure, positive contact with pin clip connectors.
Corrosion resistant, gold plated finish.

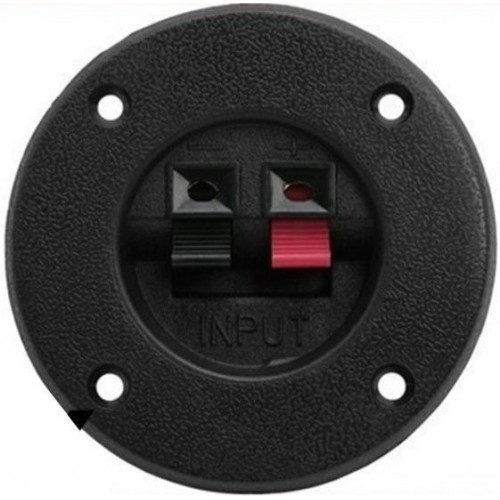

Chassis

1X High quality black plastic chassis.

Diameter 64mm or 2.51 ins.

Depth 20mm or 0.7 ins.

2 x Clip connectors.

Rear twist / solder connections.

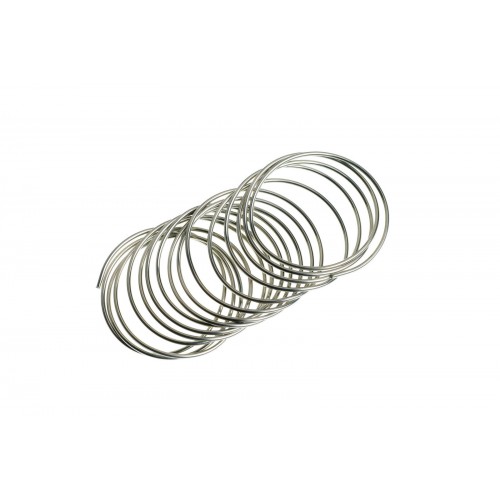

Silver Solder

Diameter : 0.7mm / 22 SWG Alloy /Sn/ Ag/Cu

4% Silver / 0.6% Copper

Flux : resin 2.2%

Melting point 217%

Length 30 cm (11.8”)  Pb lead free

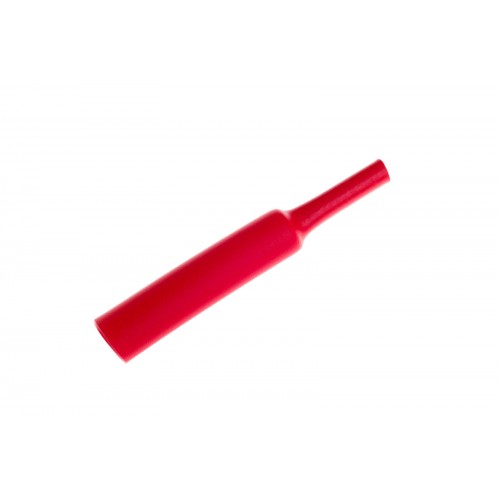

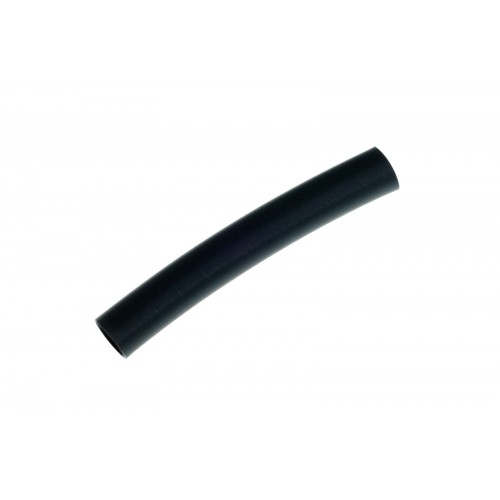

Heat Shrink

Diameter 6.5mm +/- 0.4.

Wall thickness 0.28 mm.

2:1 Shrink ratio.
